Microplate Reader 340–750 nm 82 Wells DB200/3

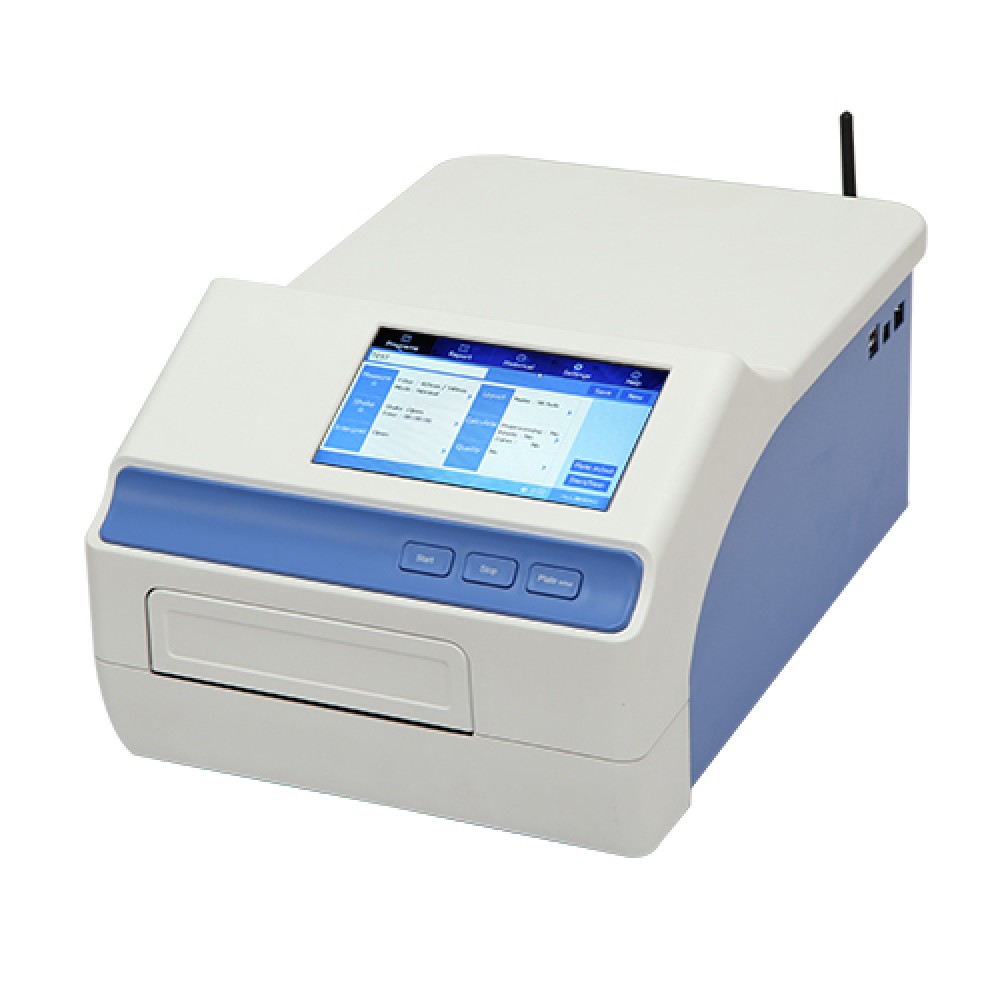

The AMR-100 Microplate Reader, with a wavelength range of 340–750nm, is a high-performance solution for a wide range of applications, including immunoassays with colorimetric substrates, such as ELISA, and protein assays such as Bradford and Lowry. It is designed for applications within the clinical, biotechnology research and pharmaceutical laboratory.

The AMR-100 can be used as a stand-alone reader or be controlled by a PC or a PAD with Android system

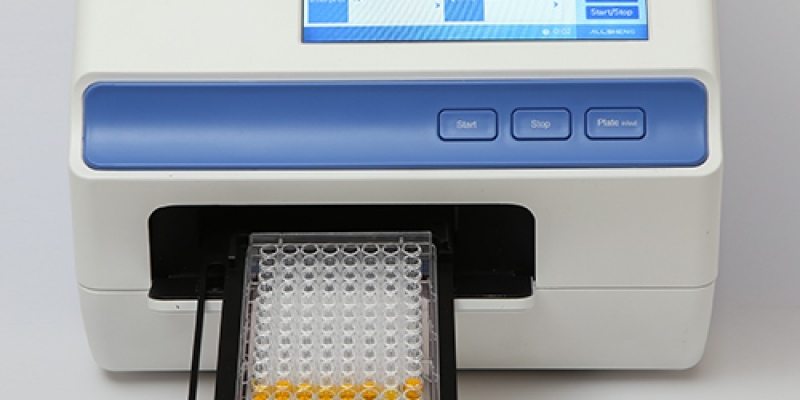

 AMR-100 Microplate Reader is a reliable and robust instrument for a wide variety of research and clinical applications. It reads various kinds of 96-wells plates and equipped with shaking function. It can be used as a stand alone instrument or under PC control with regular or APP software. The software is easy-to-use..

  It keeps with high visual and logical user interface of software, it can be offered a comprehensive inbuilt calculations, such as blank subtraction, quantitative curve fit, quanlitative classification and kinetic calculations, as well as the versatile reporting tool and make data reduction.

Filters:
The AMR-100 Microplate Reader comes with four standard absorbance filters:405, 450, 492, and 630nm. We
also supply custom filters at 5~9nm intervals from 340 to 750nm on request.

Software:
AMR-100 keeps with high visual and logical user interface of software, it can be offered a comprehensive inbuilt
calculations, such as blank subtraction, quantitative curve fit, quanlitative classification and kinetic calculations,
as well as the versatile reporting tool and make data reduction.

1. Easy of use with 7 inch touch screen together with 3 external keys
2. A broad wavelength range of 340-750nm
3. Able to use individually or connect with PC and export results
4. Absorbance range: 0.0~4.000Abs
5. 8 positions optical filter wheel, equipped with 4 standard optical filters
6. Rapid and accurate measurement of 96-well plates within 6 seconds
7. 8-channel ELISA reader for fast measurements
8. Additional reference channel for optimized light intensity
9. Endpoint, kinetic and multi-label measurements for a variety of applications
10. Shaking with variable time and speed
11. PC software, APP software and bulit-in software for powerful and validated data analysis
12. Convenient built-in shaker
13. Wide-format internal thermal graphical printer
14. Wide applicability for life science and clinical laboratories

Model	AMR-100
Display	7 inch touch screen (800×480 dots)
Light source	Quartz-halogen lamp 6V/10W
Wavelength	340-750nm
Optical filter	Equipped with filters: 405,450,492,630nm
Half-bandwidth of filters	3~9nm
Read-out range	0~4.000Abs
Linearity (405nm)	0~2.000Abs ≤±1% 2~4.000Abs ≤±2%
Resolution	0.001Abs
Accuracy (405nm)	±1% (0-3Abs) ±2% (3-4Abs)
Precision(405nm)	CV≤0.2% (0-3Abs) CV≤1.0% (3-4 Abs)
Test speed	<6s for 96 wells plate
Incubator	No
Shaking	3 modes shaking: slow, medium and fast
User interface	Integrated software or PC control software
Operation	Touch screen, 3 pcs external keys
Storage	200 programs and 100,000 test records
Ports	3 USB ports, for PC, printer and USB-disk
Power supply	AC100-240V, 50-60Hz, 2A
Dimensions(W x D x H)	440 x 295 x 225 mm
Weight	10 kg



Code	Description
AS-16050-00	AMR-100 Microplate Reader
AS-16051-01	Optical filter 340nm (Matching)
AS-16051-02	Optical filter 380nm (Standard)
AS-16051-03	Optical filter 405nm (First Matching)
AS-16051-04	Optical filter 415nm (Standard)
AS-16051-05	Optical filter 450nm (Standard)
AS-16051-06	Optical filter 492nm (Matching)
AS-16051-07	Optical filter 540nm
AS-16051-08	Optical filter 570nm
AS-16051-09	Optical filter 578nm
AS-16051-10	Optical filter 590nm
AS-16051-11	Optical filter 595nm
AS-16051-12	Optical filter 630nm (Standard)
AS-16051-13	Optical filter 650nm
AS-16051-14	Optical filter 690nm
AS-16051-25	Halogen lamp
AS-16051-26	Thermal printer
AS-16051-27	Thermal paper
